6 cable connectors + 4 connection terminals compatible for Husqvarna Automower (original from 3M)


Item number V3M-HU-314x6+951x4
RRP EUR 12.60
EUR 9.77 *
Content 10 piece
Unit price EUR 0.98 / piece
Ready for shipping, delivery in 48h

* Incl. VAT excl. Shipping

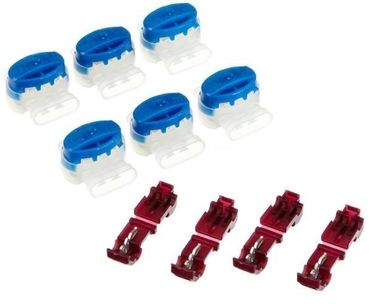

6x cable connectors (blue) and 4x terminals (red)
Original 314 and 951 of 3M

with a grease filling water resistant for 2 or 3 wires (blue)
compatible for all Husqvarna® Automower® -robotic mower models: 105, 220AC, 230ACX, 260ACX, 265ACX,
305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X


To Connect the boundary loop and the search cable during the Installation, or repair

of The Original 314 from 3M is a fat-filled connector is an absolutely water-proof, moisture-proof connection is ensured.
The cable connectors are weather-resistant and therefore ideal for Outdoor use .
The cable need not be stripped to be!! Simple with a pair of pliers to press together.
3M Scotch lock single-wire connectors for safe connection of plastic-insulated power or signal cables
with a max. Outer diameter (with insulation) of 3.94 mm
, The connectors work according to the proven U-contact principle.

The conductors to be connected to be introduced without prior Stripping in the connector.
By slight pressure, for example, with a pair of pliers, penetrates the spring-energized U-contact with the insulation
, and thus in a solid, vibration-proof and long-lasting connection.

You are bidding on:

  • 6 ( 314) cable connector + 4 ( 951) terminals of 3M®
  • Suitable for all Husqvarna Automower models: 105, 220AC, 230ACX, 260ACX, 265ACX, 305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X, ...

manufacturer's instructions:

  • manufacturer 3MTM
  • CONNECTOR, IDC, 314, PK100t
  • connector type:Wire-to-Board
  • connection method:IDC
  • wire size number, AWG:14AWG
  • Material, insulation:Nylon
  • color:Blue
  • series:
  • Material, contact:Brass
  • pad, contact:Tin
  • wire size number, AWG, max.:14AWG
  • wire size number, AWG min.:22AWG
  • wire size, max., mm2:1.5mm2
  • wire size, min, mm 2:0.5mm2,
  • rated current from 15A
  • up to 600 V
  • temperature, operating, max.:140°C
  • temperature, operating, min.:-40°C
  • diameter, wire: 3.94 mm

6x cable connectors (blue) and 4x terminals (red)
Original 314 and 951 of 3M

with a grease filling water resistant for 2 or 3 wires (blue)
compatible for all Husqvarna® Automower® -robotic mower models: 105, 220AC, 230ACX, 260ACX, 265ACX,
305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X


To Connect the boundary loop and the search cable during the Installation, or repair

of The Original 314 from 3M is a fat-filled connector is an absolutely water-proof, moisture-proof connection is ensured.
The cable connectors are weather-resistant and therefore ideal for Outdoor use .
The cable need not be stripped to be!! Simple with a pair of pliers to press together.
3M Scotch lock single-wire connectors for safe connection of plastic-insulated power or signal cables
with a max. Outer diameter (with insulation) of 3.94 mm
, The connectors work according to the proven U-contact principle.

The conductors to be connected to be introduced without prior Stripping in the connector.
By slight pressure, for example, with a pair of pliers, penetrates the spring-energized U-contact with the insulation
, and thus in a solid, vibration-proof and long-lasting connection.

You are bidding on:

  • 6 ( 314) cable connector + 4 ( 951) terminals of 3M®
  • Suitable for all Husqvarna Automower models: 105, 220AC, 230ACX, 260ACX, 265ACX, 305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X, ...

manufacturer's instructions:

  • manufacturer 3MTM
  • CONNECTOR, IDC, 314, PK100t
  • connector type:Wire-to-Board
  • connection method:IDC
  • wire size number, AWG:14AWG
  • Material, insulation:Nylon
  • color:Blue
  • series:
  • Material, contact:Brass
  • pad, contact:Tin
  • wire size number, AWG, max.:14AWG
  • wire size number, AWG min.:22AWG
  • wire size, max., mm2:1.5mm2
  • wire size, min, mm 2:0.5mm2,
  • rated current from 15A
  • up to 600 V
  • temperature, operating, max.:140°C
  • temperature, operating, min.:-40°C
  • diameter, wire: 3.94 mm
Item ID 11410
Condition New
Age rating No age restriction
Model V3M-HU-314x6+951x4
Manufacturer Genisys
Manufacturing country Germany
Content 10 piece
Weight 51 g
Net weight 60 g
Dimensions 90×80×20 mm
