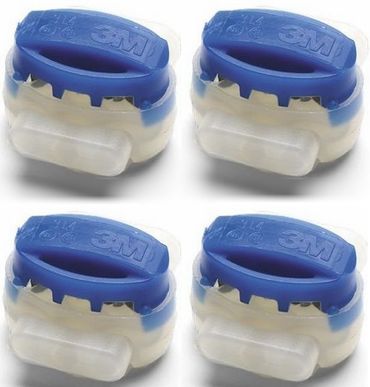

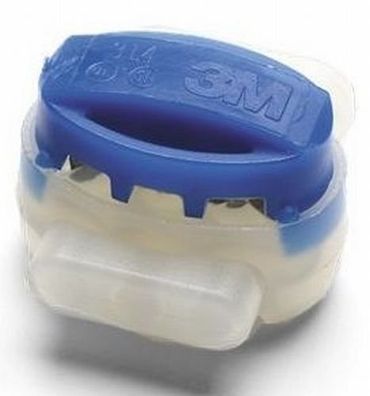

5x cable connectors wire connectors (blue) - Original ™ 314 3M®

  • repair connection of a severed wire / Installation of the search cable,
  • No Stripping of the cable is necessary due to the proven U-contact principle
  • with gel filling: waterproof, moisture-resistant, weather-resistant
  • compatible for all Bosch® Indego™ -lawn mower models: Indego 1000 connect, Indego 1200 connect. Indego 1300 connect

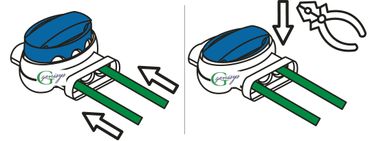

The two cable ends of the severed cable must be simple to the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.

Manufacturer's data:

  • temperature, operating, max.:140°C
  • temperature, operating, min.:-40°C
  • To Max. Diameter of wire: 3.94 mm
  • rated current from 15A
  • up to 600 V

5x cable connectors wire connectors (blue) - Original ™ 314 3M®

  • repair connection of a severed wire / Installation of the search cable,
  • No Stripping of the cable is necessary due to the proven U-contact principle
  • with gel filling: waterproof, moisture-resistant, weather-resistant
  • compatible for all Bosch® Indego™ -lawn mower models: Indego 1000 connect, Indego 1200 connect. Indego 1300 connect


The two cable ends of the severed cable must be simple to the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.

Manufacturer's data:

  • temperature, operating, max.:140°C
  • temperature, operating, min.:-40°C
  • To Max. Diameter of wire: 3.94 mm
  • rated current from 15A
  • up to 600 V

Hersteller bzw. EU-Verantwortlicher

Genisys GmbH & Co. KG

Sulzbacher Str. 7
92256 Hahnbach
Germany

ticket@genisys24.de

+499664771562

5 cable connectors compatible for Bosch Indego 1000 1200 1300 connect - Original 3M

Item number V3M-Bo-314-5-b

GTIN_13 0660989034160
