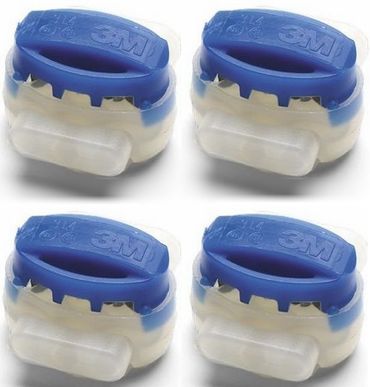

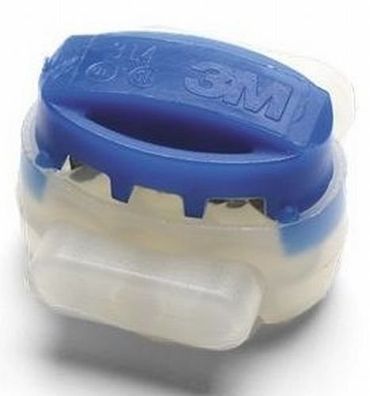

15x cable connectors wire connectors (blue) - Original 314 3M®

  • repair connection of a severed wire / Installation of the search cable,
  • No Stripping of the cable is necessary due to the proven U-contact principle
  • with gel filling: waterproof, moisture-resistant, weather-resistant
  • for allAmbrogio® -robotic lawn mower models:

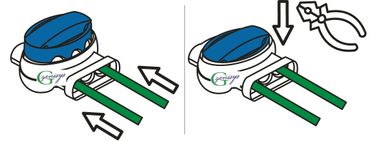

The two cable ends of the severed cable must be simple to the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.

Manufacturer's data:

  • temperature, operating, max.:140°C
  • temperature, operating, min.:-40°C
  • To Max. Diameter of wire: 3.94 mm
  • rated current from 15A
  • up to 600 V

15x cable connectors wire connectors (blue) - Original 314 3M®

  • repair connection of a severed wire / Installation of the search cable,
  • No Stripping of the cable is necessary due to the proven U-contact principle
  • with gel filling: waterproof, moisture-resistant, weather-resistant
  • for allAmbrogio® -robotic lawn mower models:


The two cable ends of the severed cable must be simple to the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.

Manufacturer's data:

  • temperature, operating, max.:140°C
  • temperature, operating, min.:-40°C
  • To Max. Diameter of wire: 3.94 mm
  • rated current from 15A
  • up to 600 V
Item ID 11341
Condition New
Age rating No age restriction
Model V3M-Am-314-15-L3
Manufacturer Genisys
Manufacturing country Germany
Content 15 piece
Weight 75 g
Net weight 60 g
Dimensions 90×80×20mm

Hersteller bzw. EU-Verantwortlicher

Genisys GmbH & Co. KG

Sulzbacher Str. 7
92256 Hahnbach
Germany

ticket@genisys24.de

+499664771562

15x wire connector cable connector 3M 314 compatible with Ambrogio L300R L400


Item number V3M-Am-314-15-L3

GTIN_13 4313042843884

RRP EUR 15.83
EUR 12.27 *
Content 15 piece
Unit price EUR 0.82 / piece
Ready for shipping, delivery in 48h
