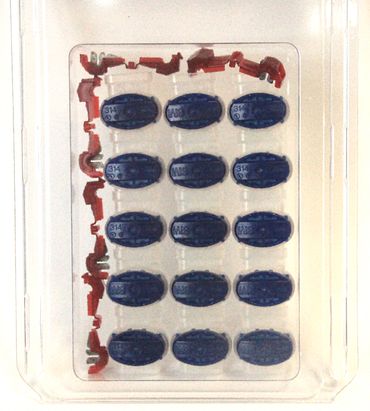

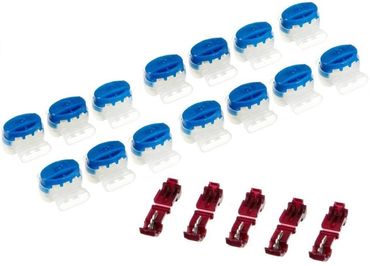

15x cable connector, wire connector (blue) and 5x clip-on terminals (red)- Original ™ 314 and 951 of 3M®
- repair connection of a severed wire / Installation of the search cable / connector of the cable to the charging station
- , No Stripping of the cable is necessary due to the proven U-contact principle
- with gel filling (314): waterproof, moisture-resistant, weather-resistant
- compatible for all the Hercules® -robotic mower models of
The two cable ends of the severed cable until the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.
The connection to the charging station, the end of the cable into the U-contact with the terminal and press together. (depending on the model of the robotic mower manufacturer)check
the manufacturer's data:
- temperature, operating, max.:140°C
- temperature, operating, min.:-40°C
- To Max. Diameter of wire: 3.94 mm
- rated current from 15A
- up to 600 V
15x cable connector, wire connector (blue) and 5x clip-on terminals (red)- Original ™ 314 and 951 of 3M®
- repair connection of a severed wire / Installation of the search cable / connector of the cable to the charging station
- , No Stripping of the cable is necessary due to the proven U-contact principle
- with gel filling (314): waterproof, moisture-resistant, weather-resistant
- compatible for all the Hercules® -robotic mower models of
The two cable ends of the severed cable until the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.
The connection to the charging station, the end of the cable into the U-contact with the terminal and press together. (depending on the model of the robotic mower manufacturer)check
the manufacturer's data:
- temperature, operating, max.:140°C
- temperature, operating, min.:-40°C
- To Max. Diameter of wire: 3.94 mm
- rated current from 15A
- up to 600 V
| Item ID | 32011 |
| Condition | New |
| Age rating | No age restriction |
| Model | V3M-He-314x15+951x5 |
| Manufacturer | Genisys |
| Manufacturing country | Germany |
| Content | 20 piece |
| Weight | 75 g |
| Net weight | 65 g |
| Dimensions | 90×70×20mm |
| Customs tariff number |
Hersteller bzw. EU-Verantwortlicher
Genisys GmbH & Co. KG
Sulzbacher Str. 7
92256 Hahnbach
Germany
ticket@genisys24.de
+499664771562
15 cable connectors + 5 connection terminals compatible for Herkules ® G-Force ® 1000 1500 2500 - Original 3M
Item number V3M-He-314x15+951x5
GTIN_13 0660989034993
