15 Wire connectors Cable connector 3M 314 compatible with Herkules Wiper One XH / Yard
* Incl. VAT excl. Shipping

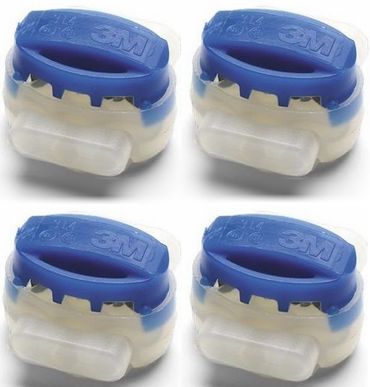

15x cable connectors wire connectors (blue) - Original ™ 314 3M®
- repair connection of a severed wire / Installation of the search cable,
- No Stripping of the cable is necessary due to the proven U-contact principle
- with gel filling: waterproof, moisture-resistant, weather-resistant
- compatible for all the Hercules® -robotic lawn mower models:
The two cable ends of the severed cable must be simple to the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.
Manufacturer's data:
- temperature, operating, max.:140°C
- temperature, operating, min.:-40°C
- To Max. Diameter of wire: 3.94 mm
- rated current from 15A
- up to 600 V
15x cable connectors wire connectors (blue) - Original ™ 314 3M®
- repair connection of a severed wire / Installation of the search cable,
- No Stripping of the cable is necessary due to the proven U-contact principle
- with gel filling: waterproof, moisture-resistant, weather-resistant
- compatible for all the Hercules® -robotic lawn mower models:
The two cable ends of the severed cable must be simple to the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.
Manufacturer's data:
- temperature, operating, max.:140°C
- temperature, operating, min.:-40°C
- To Max. Diameter of wire: 3.94 mm
- rated current from 15A
- up to 600 V
| Item ID | 11329 |
| Condition | New |
| Age rating | No age restriction |
| Model | V3M-He-314-15-OY |
| Manufacturer | Genisys |
| Manufacturing country | Germany |
| Content | 15 piece |
| Weight | 75 g |
| Net weight | 60 g |
| Dimensions | 320×220×20 mm |
